Basic Diaphragm pump kits

Selmech's basic diaphragm pump kits are a complete applicator kit supplied with a choice of pumps covering an output range from 0.5 to 10 litres per minute and our own PWM in cab controller. These can be supplied as a tank kit with the choice of 3 tank size 125, 175 or 250 litre with a tilting bracket with multiple mounting options. A pump module to be used with an auxiliary tank or as a DIY kit for you to assemble. All kit come with a twin jet pack, filter, 10 meters of hose and cable. A range of additional option are available.

Features

  • Diaphragm pump
  • PWM speed controller
  • Twin jet pack

PWM controller

Our own in cab variable speed controller that enables the operator to set the out put of the pump easily and make manual adjustments for varying crop densities. It has an LED fault indicator to warn of a blown fuse or power supply issues. There is a boost button to run the pump at full speed for a short period if there is a temporary heavy crop density encountered. There is an output for the addition of a thru beam crop detector. A guide calibration chart is provided to help set the required output.

Features

  • Variable speed controller
  • Boost button
  • LED fault indicator
  • Crop detector option

Thru beam crop detector kit option

A thru beam crop detector kit option is available for use on balers and forage wagons. When positioned to detect the swath as gathered up by the pick up it will switch the pump on when the beam is broken and off when it is not.


Some examples of SDP kit applications.

Showing range of basic diaphragm pump silage additive kits
Basic Kits

The Basic Diaphragm Pump applicators can be supplied as tank or module kits or as build your own DIY kits.

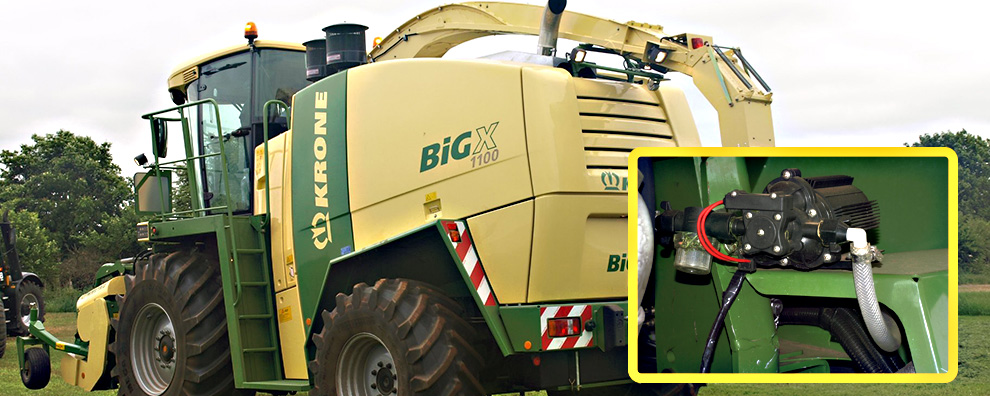

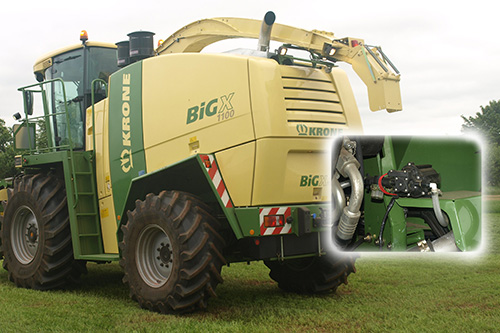

High volume diaphragm pump additive kit on a self proppelled forage havester
Diaphragm Pump

High volume Diaphragm kit used to apply additive on a self propelled forage harvester.

Basic tank additve applicator kit mounted on a silage clamp compactor
Basic Tank Kit

An basic tank kit with mounted on a silage pit compactor to apply additive.

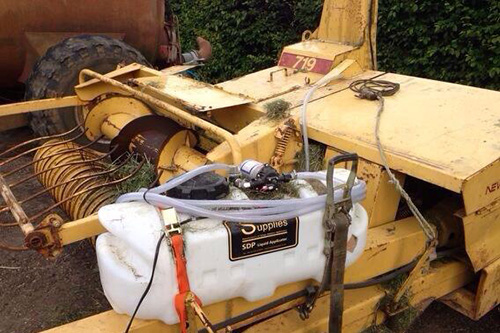

DIY basic slage applicator on a trailed forage harvester
Basic Kit on 100L tank

Basic DIY kit with a 100 litre tank for applying additive on a trailed harvester .

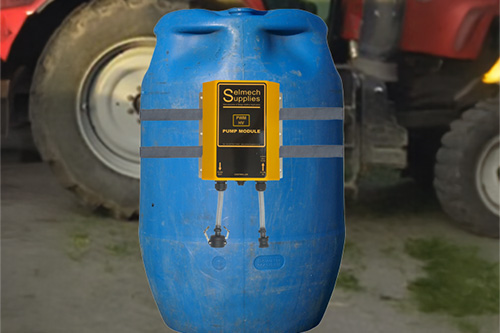

Basic silage applicator module strapped to a 200 litre barrel
Barrel Mount

Slots in the basic pump module bracket for strapping to a 200 litre barrel.
