Designed to be used in conjunction with a separate tank, our pump modules consist of a reliable, high quality diaphragm pump, mounted on a versatile aluminium bracket and protected by a durable plastic cover. The pump is to be positioned on or near to the additive source, whether this is a user supplied tank, 200L drum, IBC, a tank built into a harvester or one of the range of stand-alone tanks Selmech can source including our 400L underslung tank. The additive is then drawn from the source, through an easy to clean filter, then onto to the application point. These kits are available with three different pump outputs: 0.1 – 1 L/Min, 0.5 - 5 L/Min litres or 1 - 10 L/Min (open flow) as well as a choice of digital or basic controller.
All kits are supplied with easy to clean filters, 2 spray nozzle holders, (more can be added if preferred) a selection of jet sizes, 2m power cable and 10 meters of durable braided tubing with quick release connecters.
Selmech’s digital in cab controller has custom settings to set it up to suit your operating preferences. A flow sensor is read by the control box to monitor and automatically adjust the pump motor to deliver additive precisely.
An applicator stop start signal from your harvesting machine, if available, can be used by the control box to pause and resume the pump automatically. It will keep a running total of the amount of additive used. There is a connector in the control box for the addition of a thru beam crop detector and the option of using a Low-level warning switch.
Our own in cab variable speed controller that enables the operator to set the output of the pump easily and make manual adjustments for varying crop densities. It has an LED fault indicator to warn of a blown fuse or power supply issues. There is a boost button to run the pump at full speed for a short period if there is a temporary heavy crop density encountered. There is an output for the addition of a thru beam crop detector. A guide calibration chart is provided to help set the required output.
A thru beam crop detector kit option is available for use on balers and forage wagons. When positioned to detect the swath as gathered up by the pick up it will switch the pump on when the beam is broken and off when it is not.

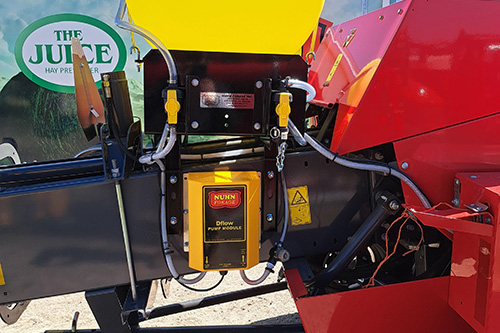

Covered pump module with bracket for easy mounting.

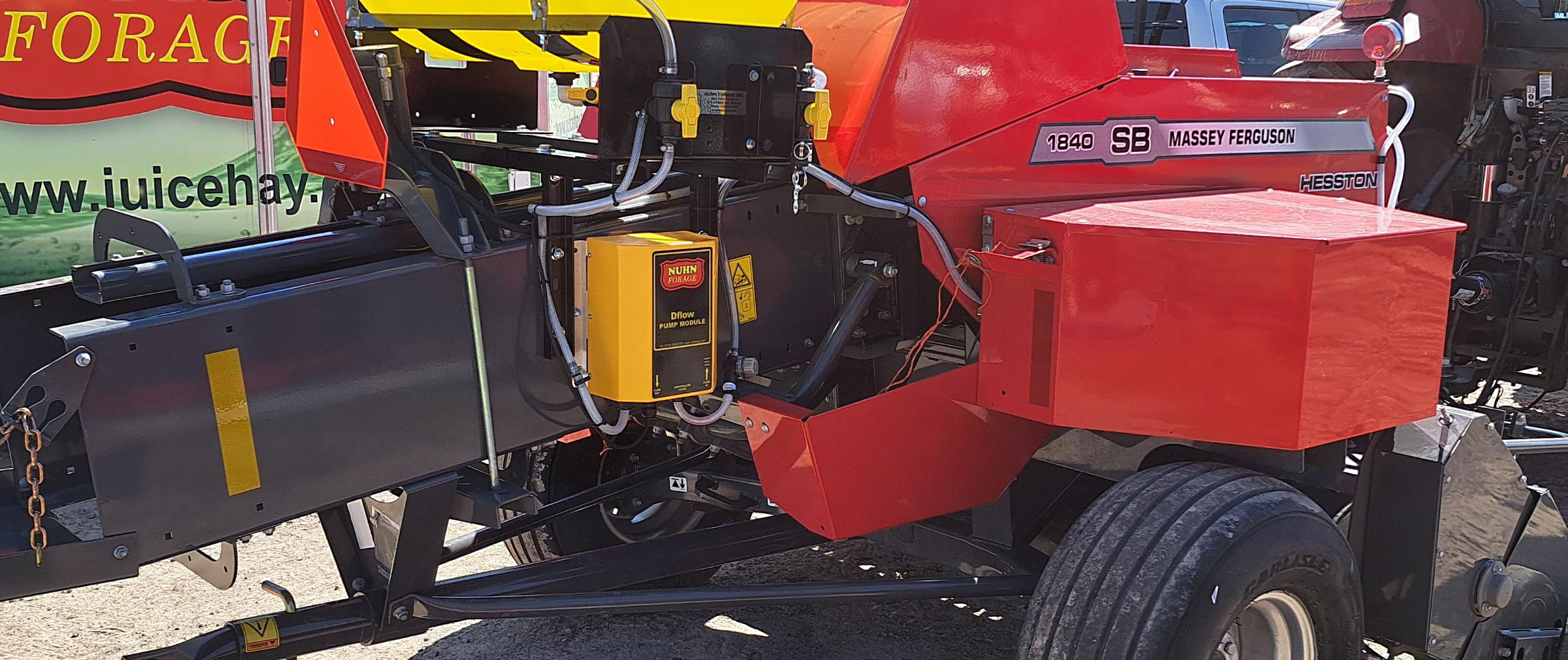

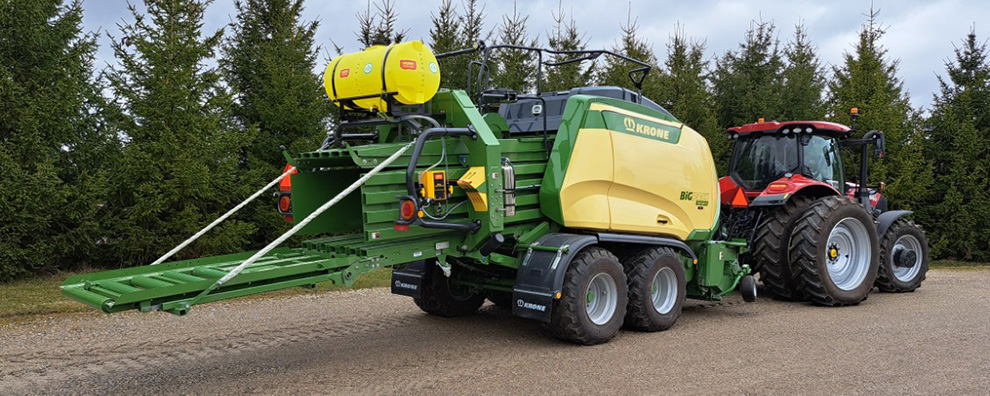

Can be with any size tank or configuration of your choice.

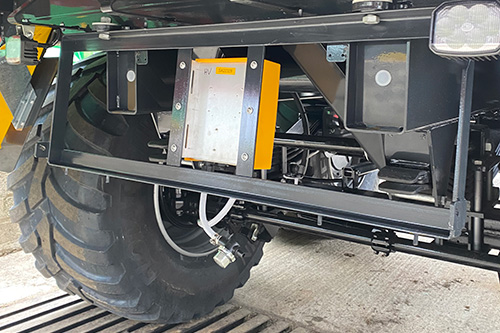

Here the module is mounted on a frame for an underslung tank.

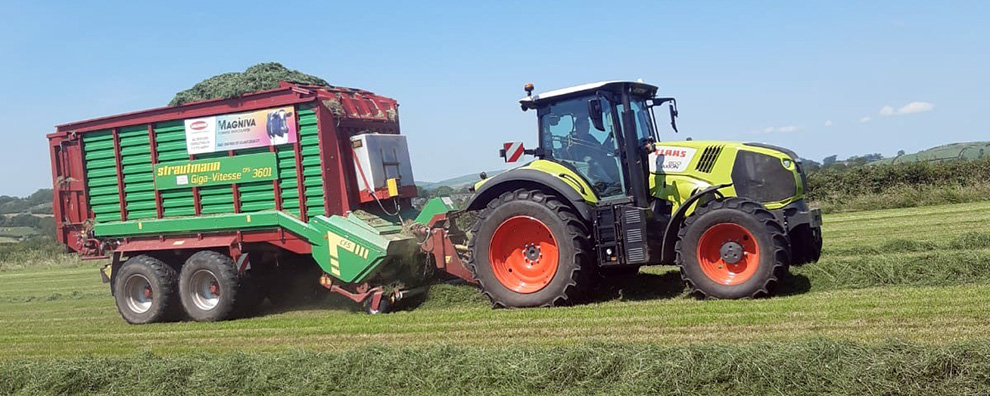

Dflow module mounted with 400 litre tank on a forage wagon.

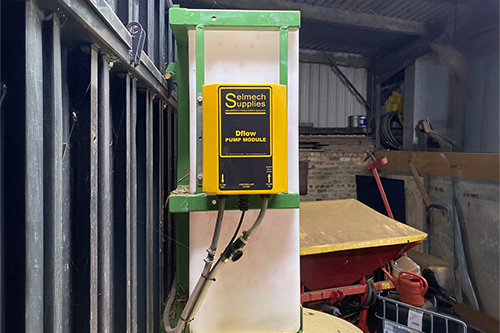

Slots in the bracket for strapping to a 200 litre barrel.
The user manual is in two parts. The control box and the pump module. Use the links below to down load the ones you want.
The Dflow control box.
The pump module of which there are three models
Basic PWM control box
Basic pump module user manuals
Always refer to the user manual to make sure you have the applicator set up correctly. There is a fault finding table in the manual which may help you solve the problem. There are also some links below to further help you.
